產品型號 Product Model |
CG-LD-B120 |
輸入電源 Input Voltage |
AC85-265V / |
電源頻率 Freqency Range |
50HZ-60HZ |
功率因數 Power Factor |
>8.8 |
LED驅動方式 LED Driving Mode |
恒流350mA |
LED壽命 LED Life |
50000H |
LED顏色 LED Color |
W-color |
LED數量 LED Quantity |
120pcsX1W |
配光方式 Light Design |
LED+反光罩(Lens) |
光束角 Beam Angle |
65°120° |
色溫度 Light color |
6000K |
LED功率 LED Power6 | 120W |
LED結點溫升 LED Node Temperature |
<65°C |
工作溫度 Working Temperature |
-40°C- +55°C |
防護等級 IP Grade |
IP66 |
外殼材質 Shell Material |
鋼化玻璃、散熱鋁 |
電源連接線 Power Cables |
棕Brown 藍Blue 地線GND |

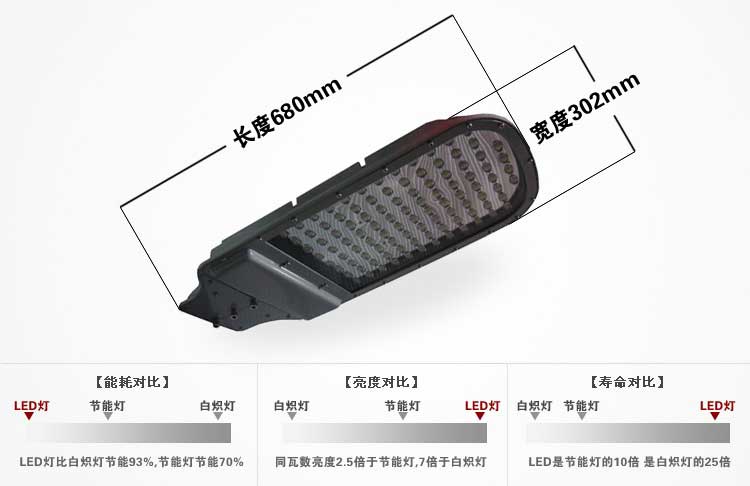

燈具尺寸 SIZE |
680*302*70 |
燈具照度 LM |
10000LM |
產品認證 Product Certification |
CE RoHS |
