urrent location：Home > product details

LED Floodlight-80W-CG-FG-A080

Model：CG-FG-A080

Power：80w

Size：290mm*360mm

Projection distance：4.5-5.8M

Luminous color：white, cold white, warm white, green, blue, red, yellow

Lamp color：blue-gray

Shell work：Aluminum alloy

Light chip：Imported high-quality high-power lamp bead

Product characteristics：The lamp body is made of high quality aluminum alloy manufacture, the cooling efficiency is high; and the use of design of strong air convection, ensuring the cooling effect; the lamp body adopts the combination of precision abrasive casting close, effectively prevent impurities intrusion; the power supply adopts intelligent control chip, to achieve the voltage and current stabilizing effect, ensure the endurance life of lamps and lanterns, is the first choice for a new era of new environment-friendly energy-saving light source!

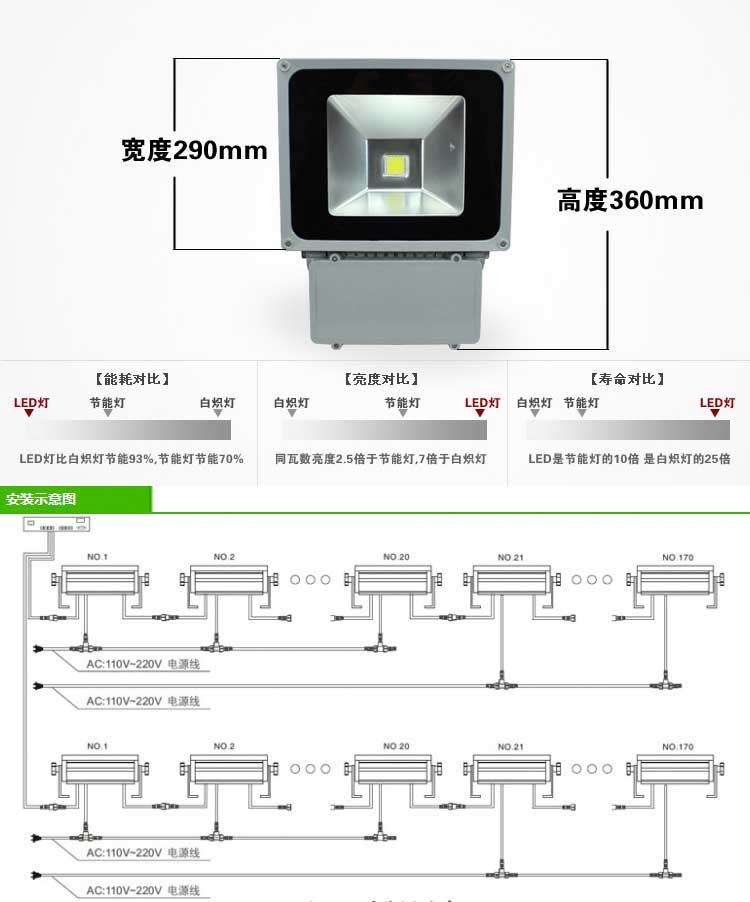

Dimension sketch map

Parameter description

產品型號 Product Model	CG-FG-A080
輸入電源 Input Voltage	AC220V
電源頻率 Freqency Range	50HZ-60HZ
功率因數 Power Factor	＞8.8
LED驅動方式 LED Driving Mode	內置防水電源
LED壽命 LED Life	50000H
LED顏色 LED Color	正白、冷白、暖白、綠、藍、紅、黃
LED數量 LED Quantity	1pcs
配光方式 Light Design	LED+反光罩（Lens)
光束角 Beam Angle	150°
LED功率 LED Power	80W
LED結點溫升 LED Node Temperature	＜65°C
工作溫度 Working Temperature	-40°C- +55°C
防護等級 IP Grade	IP65
外殼材質 Shell Material	鋼化玻璃、散熱鋁
電源連接線 Power Cables	棕Brown 藍Blue 地線GND
燈具尺寸 SIZE	290mm*360mm
燈具照度 LM	7200LM
產品認證 Product Certification	CE

product details

產品使用場合:
各種需要大型高強度光照的環境,比如說大型足球場,大型棒球場,體育館,娛樂廣場等等
產品特點:
外殼采用優質鋁材壓鑄而成，散熱性能優越，光源采用超高亮度的燈珠制作,
亮度極高,并且使用更穩定,內置恒流驅動電源，確保燈具性能穩定。
