urrent location：Home > product details

LED Wall lamp-9W-CG-XQ-D009

Model：CG-XQ-D009

Power：9W

Size：長度310mm 寬度50mm 高度120mm

Projection distance：0.8-2.6M

Luminous color：Red. Green. Blue. Yellow. Warm white. White, cold white. Colorful

Lamp color：Silvery white

Shell work：Aluminum alloy

Light chip：Imported high-quality high-power lamp bead

Product characteristics：The lamp body is made of high quality aluminum alloy manufacture, the cooling efficiency is high; and the use of design of strong air convection, ensuring the cooling effect; the lamp body adopts the combination of precision abrasive casting close, effectively prevent impurities intrusion; the power supply adopts intelligent control chip, to achieve the voltage and current stabilizing effect, ensure the endurance life of lamps and lanterns, is the first choice for a new era of new environment-friendly energy-saving light source!

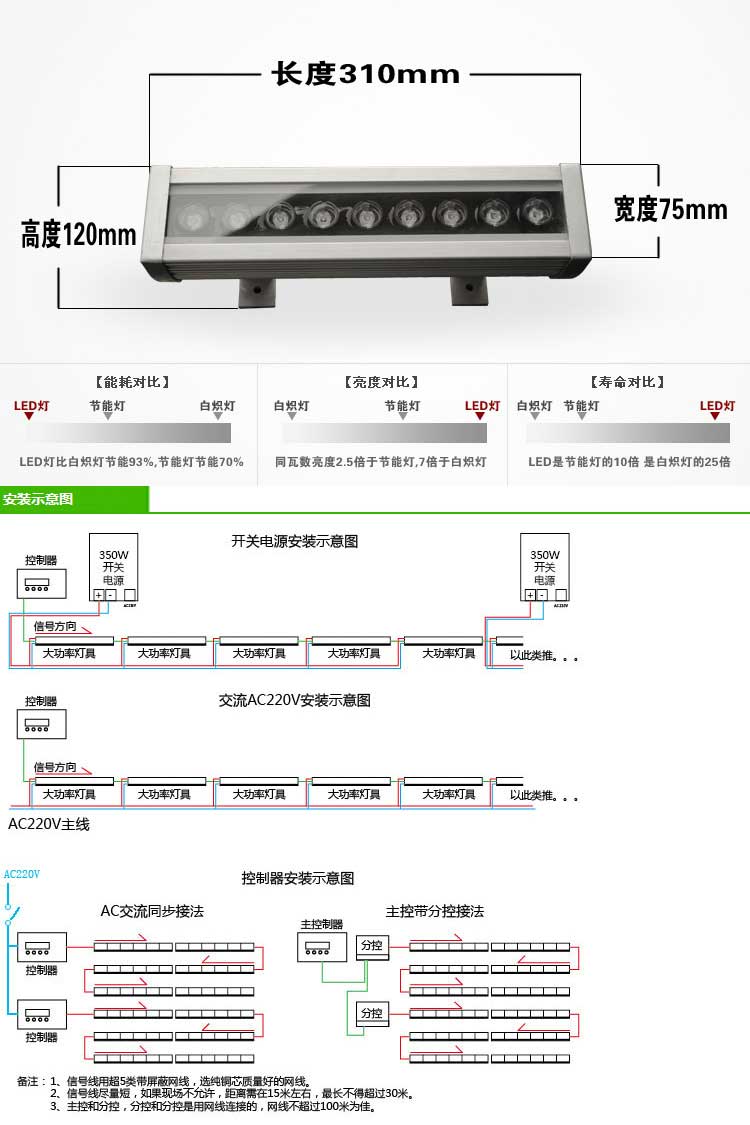

Dimension sketch map

Parameter description

產品型號 Product Model	CG-XQ-A009
輸入電源 Input Voltage	AC220V
電源頻率 Freqency Range	50HZ-60HZ
功率因數 Power Factor	＞8.8
LED驅動方式 LED Driving Mode	內置防水電源
LED壽命 LED Life	50000H
LED顏色 LED Color	白光、冷白、暖白、綠、藍、紅、黃、七彩
LED數量 LED Quantity	9pcs
配光方式 Light Design	LED+透鏡（Lens)
光束角 Beam Angle	15°45° 60°120°可選
LED功率 LED Power	9W
LED結點溫升 LED Node Temperature	＜65°C
工作溫度 Working Temperature	-40°C- +55°C
防護等級 IP Grade	IP66
外殼材質 Shell Material	鋼化玻璃、散熱鋁
電源連接線 Power Cables	棕Brown 藍Blue 地線GND
燈具尺寸 SIZE	長度310mm 寬度50mm 高度120mm
燈體重量 Weight	1410g
燈具照度 LM	900LM
產品認證 Product Certification	CE

product details

產品使用場合:
單體建筑、歷史建筑群外墻照明。大樓內光外透照明、室內局部照明。
綠化景觀照明、廣告牌照明。醫療、文化等專門設施照明;酒吧、舞廳等
娛樂場所氣氛照明等
產品特點:
外殼采用優質鋁材壓鑄而成，散熱性能優越，光源采用超高亮度的燈珠制作,
亮度極高,并且使用更穩定,內置恒流驅動電源，確保燈具性能穩定。
